Dimensions and section properties for Pipe5STD

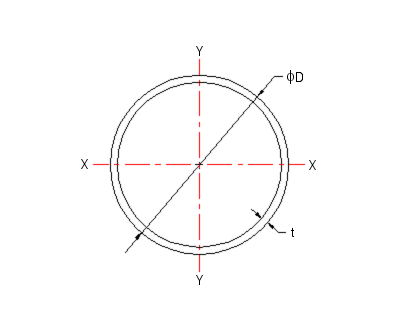

Structural sectional properties for a Pipe5STD standard steel section

US Customary Units

Description	Symbol	Value
Shape Category / Designation	Type	PIPE
Section Name	Name	Pipe5STD
Cross Sectional Area	A	4.01 in²
Section Depth	d	5.56 in
Flange thickness	tf	0.258 in
Web thickness	tw	0.258 in
Radius of Gyration about X-X	rx	1.88 in
Radius of Gyrations about Y-Y	ry	1.88 in
Moment of Inertia about X-X	Ix	14.3 in⁴
Moment of Intertia about Y-Y	Iy	14.3 in⁴
Elastic Section Modulus about X-X	Sx	5.14 in³
Elastic Section Modulus about Y-Y	Sy	5.14 in³
Plastic Section Modulus about X-X	Zx	6.83 in³
Plastic Section Modulus about Y-Y	Zy	6.83 in³
St. Venant Torsional Constant	J	28.6 in⁴
Self Weight of section	Weight	14.6 lb/ft

Metric Units

Description	Symbol	Value
Shape Category / Designation	Type	PIPE
Section Name	Name	Pipe5STD
Cross Sectional Area	A	2587 mm²
Section Depth	d	141 mm
Flange thickness	tf	6.6 mm
Web thickness	tw	6.6 mm
Radius of Gyration about X-X	rx	48 mm
Radius of Gyrations about Y-Y	ry	48 mm
Moment of Inertia about X-X	Ix	6000000 mm⁴
Moment of Intertia about Y-Y	Iy	6000000 mm⁴
Elastic Section Modulus about X-X	Sx	84000 mm³
Elastic Section Modulus about Y-Y	Sy	84000 mm³
Plastic Section Modulus about X-X	Zx	112000 mm³
Plastic Section Modulus about Y-Y	Zy	112000 mm³
St. Venant Torsional Constant	J	11904000 mm⁴
Self Weight of section	Weight	22 kg/m

Note: Metric units have been converted from tabulated imperial values and rounded to a reasonable number of significant figures.

A Pipe5STD steel section is a standard North American steel section in the PIPE - STD Pipes category. The height and width of the section are 5.56 in (141 mm) and 5.56 in (141 mm) respectively. It weighs 14.6 lb/ft (22 kg/m) and has a cross sectional area of 4.01 in² (2587 mm²).

The section has a tensile yield capacity of:

kip

The section has a flexural plastic moment capacity of:

kip-ft

The section has a flexural elastic moment capacity of:

kip-ft
